Yarn Tension Meters 經紗張力測定器(指針式) Model:DXK-300,DXK-1000,DXK-2000

張力計； 紙類試驗機器； 其他汎用機器及器材； 纖維； 纖維試驗機器； 紙類試驗機器；

機械張力計，用於測量經線上在停滯織機，張力計放置在紗線上用於測定單個經紗或多個線程的張力計。

3 tension ranges from 20 - 300 cN up to max. 200 - 2000 cN

Mechanical tension meter for measuring warp threads on stagnant weaving machines

Hand-held unit for determinating the tension of a single warp thread or several threads

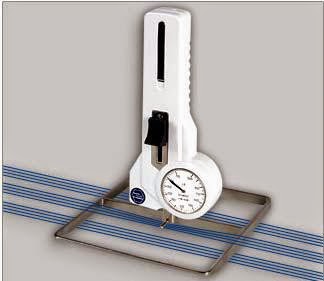

Tension meter with large reference frame for easy placing on the yarn

Special Features

Tension meter with analog display

•Large reference frame (15 x 17 cm) will be placed on a sheet of warp yarns. Thereby save and accurate measurings are possible
•Width of the sensing pin 10 mm (34 mm optionally available)
•Determinating the statical tensions of warp threads, not dynamic
•Roller shifting mechanism ensure easy acquisition of the running material

Standard Features
•Everything in operator’s view:
- the guide rollers
- the measured material
- the readings
•Each instrument is individually calibrated for highest accuracy
•41 mm O scale
•Tension meter with rugged aluminium housing
•Certificate of Compliance with the order 2.1 according EN 10204 is included
•Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Available Models
Model Messbereich
cN SCHMIDT
Calibration* Material thickness
compensator
DXK-300 20 - 300 fabric tape no
DXK-1000 100 - 1000 fabric tape no
DXK-2000 200 - 2000 fabric tape no

Specifications
Calibration: According to SCHMIDT factory procedure
Accuracy: ±1 % full scale or ±1 graduation on scale
Scale diameter: 41 mm
Temperature range: 10 - 45 oC
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Housing dimensions: 188 x 85 x 45 mm (LxWxH)
Weight, net (gross): Approx. 470 g (1000 g)
